Viewpoint Products

We have been a manufacturer of greenhouse shade netting for over 40 years. Our greenhouse shading net can also be used in agriculture, irrigation tape system, geotextile, industrial & anti insect net made of HDPE with UV resistance...

Geotextile Net

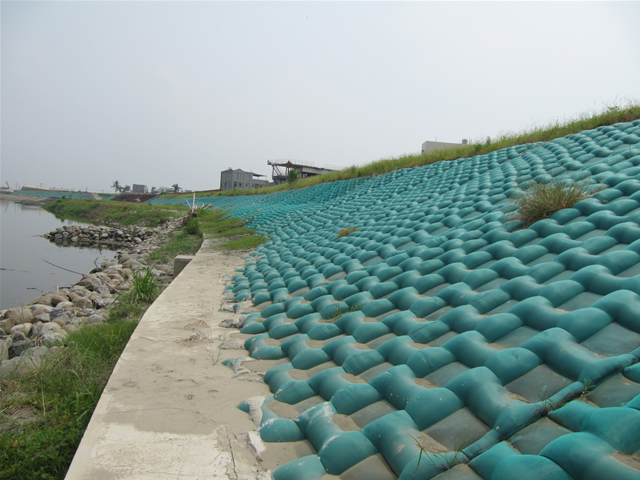

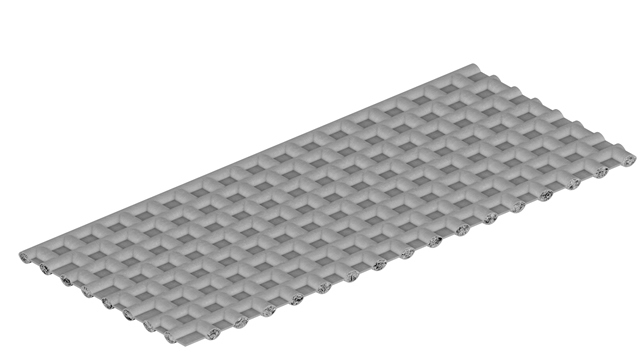

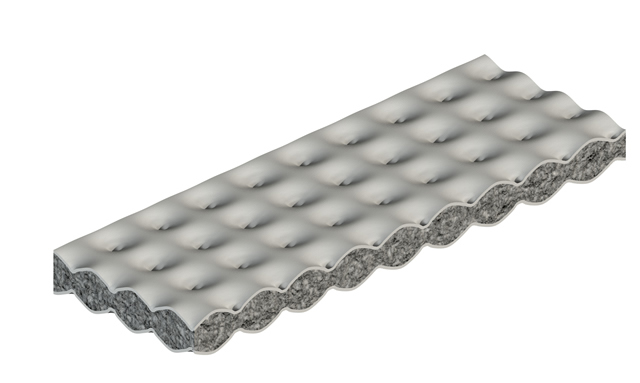

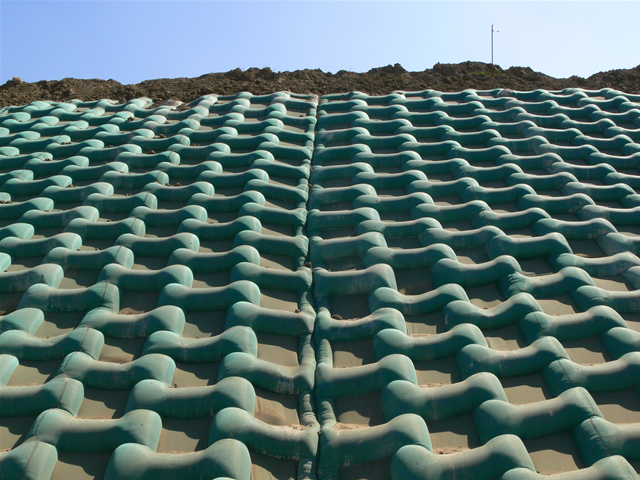

GEO Matts

Woven out of double layers of geotextile casting, GEOMatts can be connected with each other to form a variety of mattress systems which provide superior solution to erosion control, in virtue of flexible polyester or concerete, GEOMatts fits diverse terrain perfectly and relieves hydrostatic pressure significantly at the same times, which results in effective revetment of great stability.

Why GEOMatts?

First of all, GeoMatts is manufactured by plants certified as meeting the requirements of ISO 9001:2000, which ensures that it is reliable and worthy of your trust. Furthermore, GEOMatts proved so efficient and economical in extensive practical fields that it has been regarded as no longer just an alternative but rather the most desirable solution.

  • It is easy to carry and apply, thus economical of time and cost.
  • Quick installation results in minimal disturbance to environment and great help to emergency repair.
  • Attributed to flexibility high tensile strength and superior permeability, GEOMatts drains water effectively and achieves permanent stability.
  • GEOMatts is designed to resist erosion and weathering, and provide firm foundation for vegetation.
  • GEOMatts can be tailored, stitched, and installed to fit various field, and the structural integrity is always maintained.

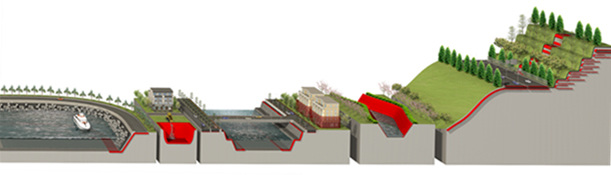

When and Where GEOMatts?

GEOMatts has proved to perform well for an extensive range of projects. In general, GEOMatts functions as,

  • Marine and riverside revetment
  • Ground Sills
  • Slope stabilization
  • Erosion and scouring control
  • Structures reinforcement and protection (such as piles, levees, piers, abutment, etc)
  • Sustaining vegetation.

Which GEOMatts?

We provide standard grades of GEOMatts suitable for most practical applications to assist in construction at a competitive cost.

Grades Properies GEOMatts I GEOMatts II
Tensile Strength (KN/M) Warp ≧40
Weft ≧20
Warp≧120
Weft≧110
Elongation (%) Warp≦22
Weft≦22
Warp≦43
Weft≦25
Water Permeability (L/㎡/sec) ≧20 ≧18
Apparent Opening Size AOS (μ) ≦330 ≦300
Mass Per Unit (g/㎡) ≧400 ≧420
Width (m) ≧5 ≧5
Material (Warp / Weft) PA/PE PA/PE
Void Size (c㎡) 17 × 17 30 × 30

Besides grades above, versatility of design of GEO Matt are ready to be custom-made to meet specific requirement.

We are also geotextile manufacturer & supplier. Geotextile is formed by the high pulling force strength polyethylene fiber bundle that belongs to the net using in environmental engineering. It has the function of anti-ultraviolet ray, material decomposition, PH of PVE protection film. Its mainly usage is in the different large fundamental engineering construction.

The mainly use is in the hillside land developmental engineering, roadway construction engineering, trash burial ground developmental engineering, golf field green, and special design and flexible application in any soil and civil engineering. This product has the resistant potential change, high intensity, light material, and high flexibility.

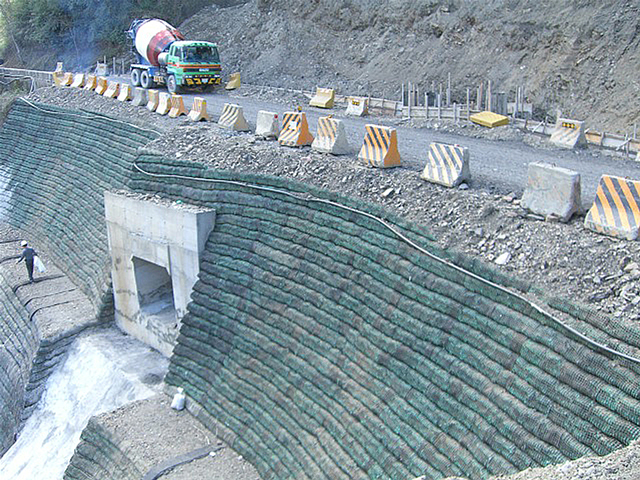

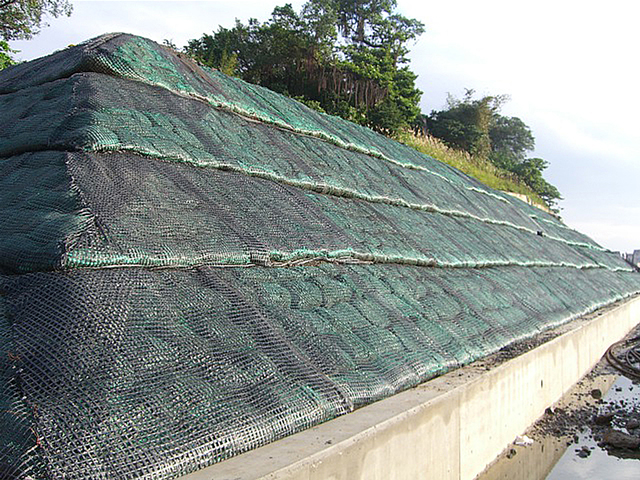

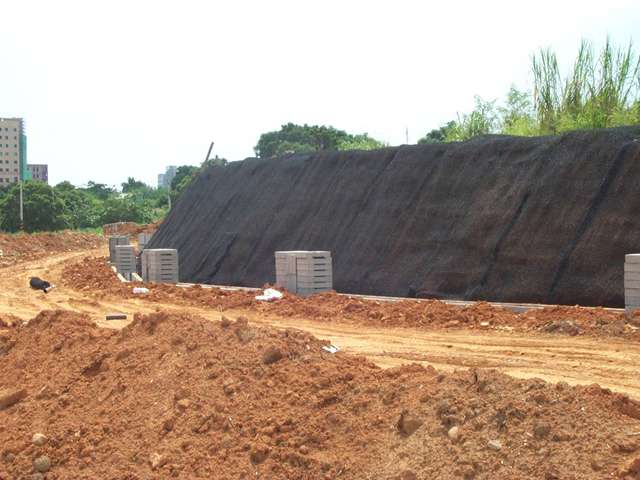

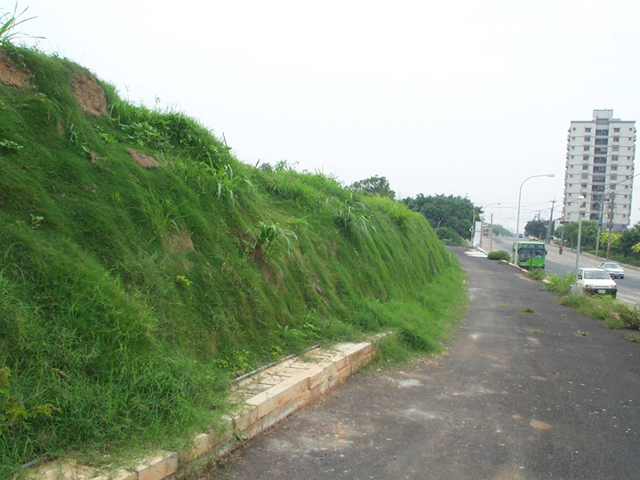

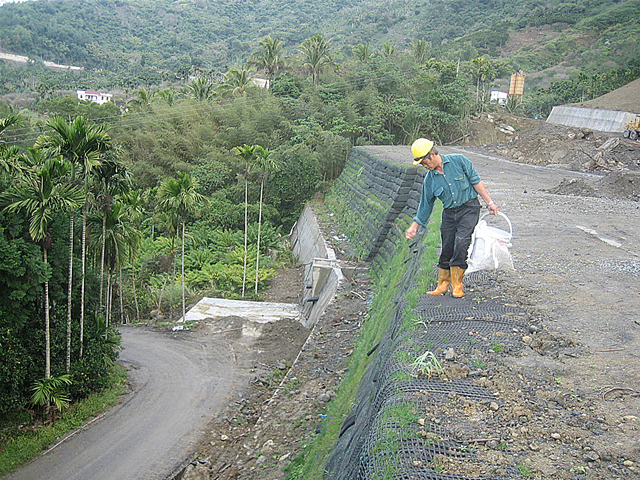

Geogrid Net


Material : HDPE Coated PVC


Product information Unit TGB-020 TGB-030 TGB-040 TGB-060 TGB-080 TGB-100 TGB-150 TGB-200 TGB-400 TGB-600
Length m 50 50 50 50 50 50 50 50 50 50
Width m 4 4 4 4 4 4 4 4 4 4
Weight g/sqm 190 245 300 340 400 450 570 770 1400 2100
Tension Strength MD KN/m 20 30 40 60 80 100 150 200 400 600
CD KN/m 20 30 30 30 30 30 30 30 50 50
Elongation MD % < 10 < 10 < 10 < 10 < 10 < 10 < 11 < 13 < 14 < 15
Aperture Size MD±20% mm 27 25 24 23 22 20 19 18 18 15
CD±20% mm 28 28 28 28 28 28 28 28 28 28
Weight of roll Kg 38 49 60 68 80 90 114 154 280 420
20' container sqm 20,000 20,000 18,000 16,000 14,000 13,000 10,800 9,000 6,000 4,000
40' container sqm 40,000 40,000 36,000 32,000 28,000 26,000 21,600 18,000 12,000 8,000
40' Dry High Cute sqm 58,500 58,500 52,650 46,800 40,950 38,025 31,590 26,325 17,550 11,700


TGB-40
TGB-60
TGB-80

TGB-100
TGB-150
TGB-400
more

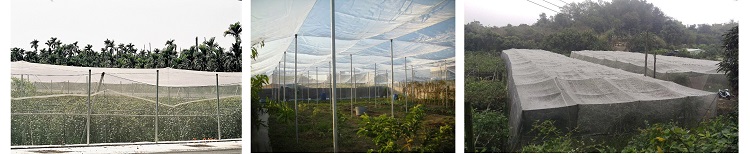

Agriculture Net

農業網


Specific of Production:

Viewpoint Enterprise is a professional plastic net manufacturer for agriculture. The product was made by pure HDPE with UV. So the net has stable quality and long life. The main product is include anti insect net , woven shade netting, knitting shade net, ground cover, anti hail net, PE mulch film, fence net, silo net, and else plastic net.

The features:

1. To resist ultraviolet ray.
2. To shelter sunshine effectively and avoiding over exposure.
3. Special triple dimensional net and resisting on wind.
4. To prevent from birds and insects to intrude into farm.
5. To prevent from rainy, frost, hall, and isolate from the varieties of poultry effectively as the fence.
6. Super width for 15 M.
7. To control and adjust greenhouse temperature by different rates of ventilation.

more

Irrigation Tape System

Irrigation Tape System Introduction:

The people knew that after Israel used irrigation system widely, the global farmer / people start to use and understand this system fully. For purpose of irrigation system is saving the water. Especially the Water shortage area. No water to waste.



The water resource was one kind of treasure for all of people now. Using irrigate system to save water was be the new way and technology. The irrigation system was apply to agriculture and horticulture nowadays.



The Irrigation Tape is an easy way for farmer to install in the farm or greenhouse or garden. The irrigation tape have to connect with water machine for using in different cultivation area.



The irrigation tape is easy to install and maintain. The tape is easy and quick to install, switch, and change in connector or Valve. The farmer can control and watch the water/ fertilizer by irrigation system in greenhouse / farm.



Finally the corps have stable grow system so that the farmer can save their time and cost. So far they can earn more profit after using this system.

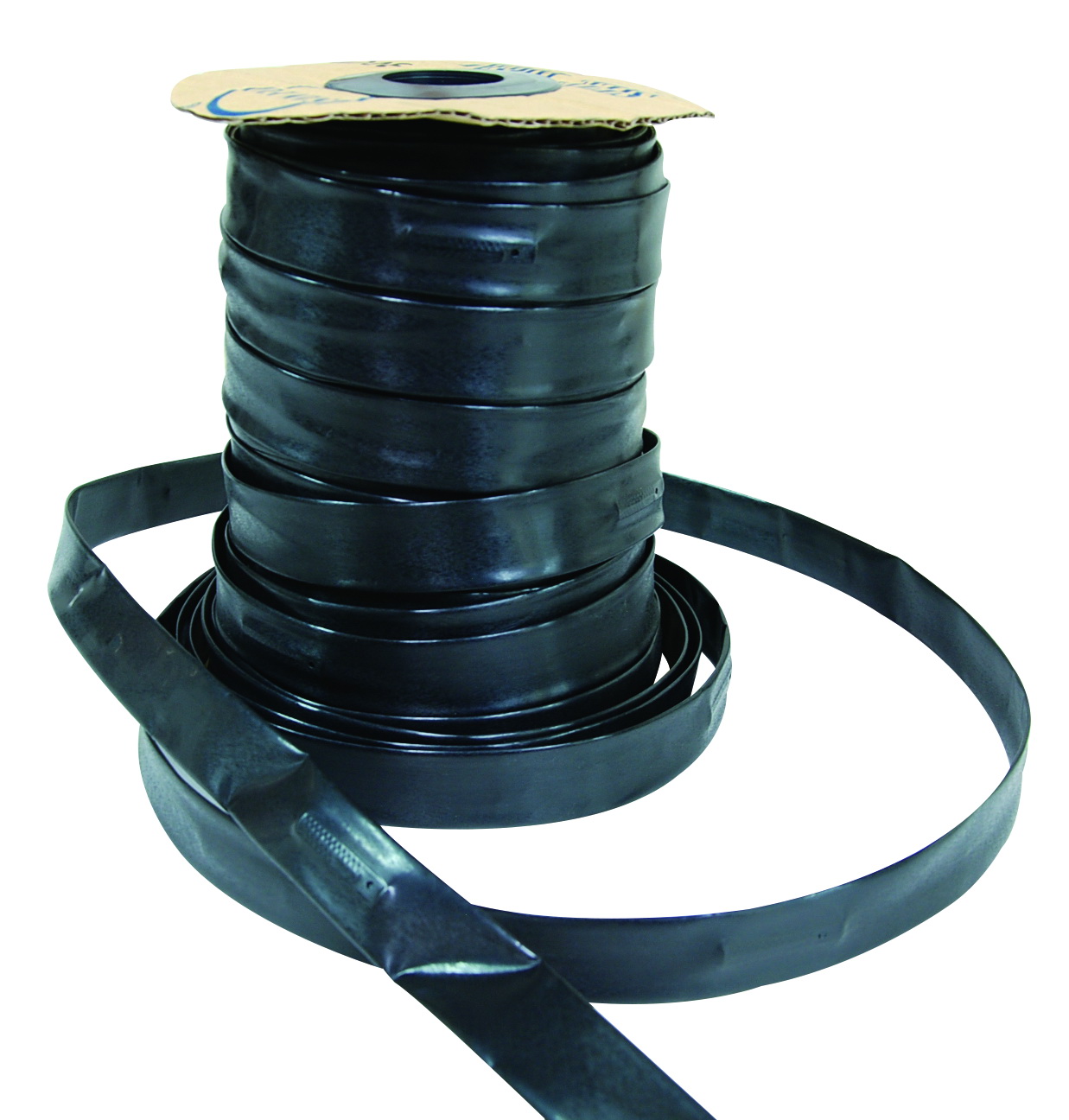

Irrigation Tape Irrigation Tape
Diameter: 16mm
Flow: 1L & 2L /Hour
Thickness: 0.18, 0.2, 0.3mm
Length: 1000m
Gap: 10, 15, 20, 30cm

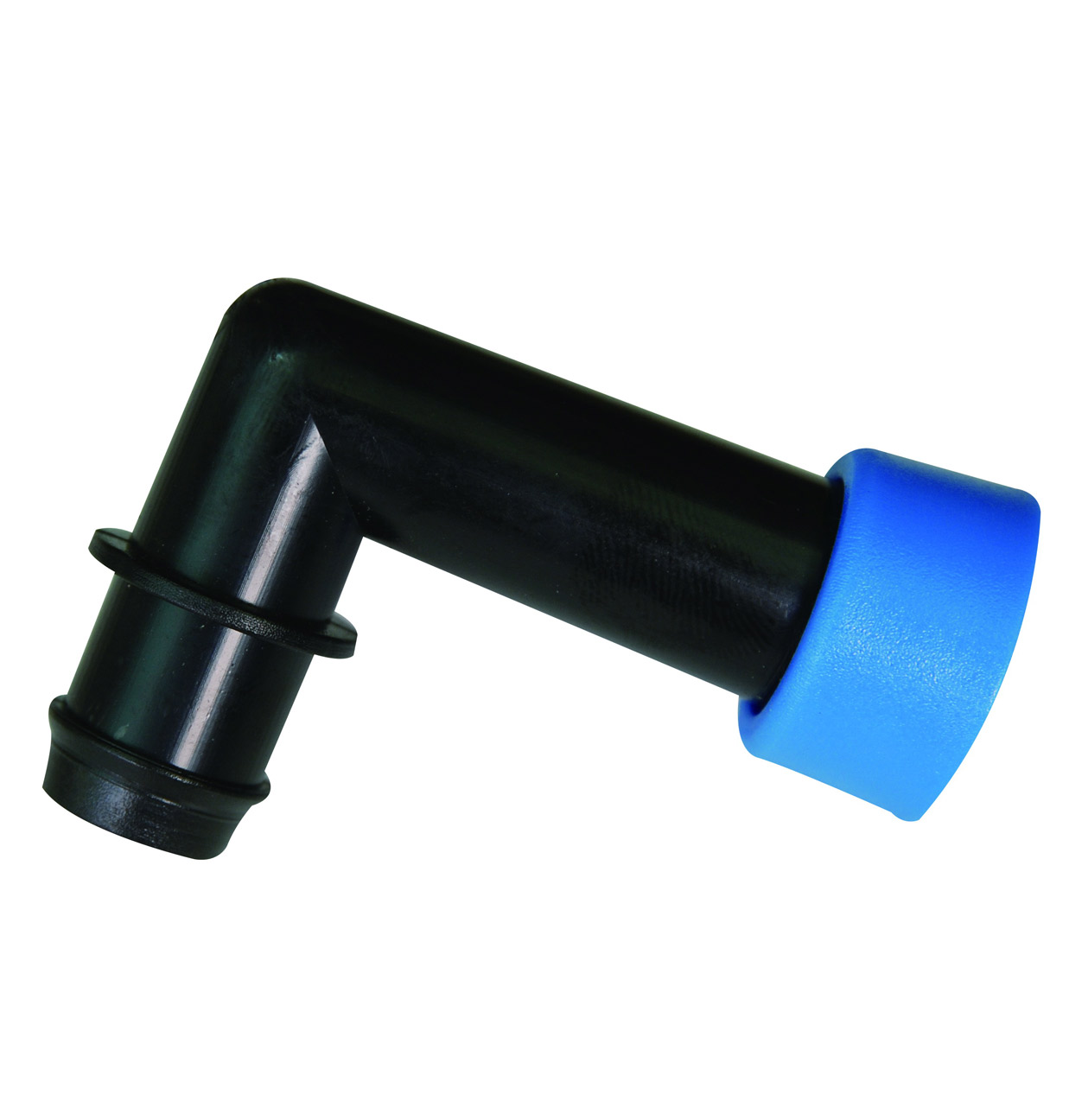

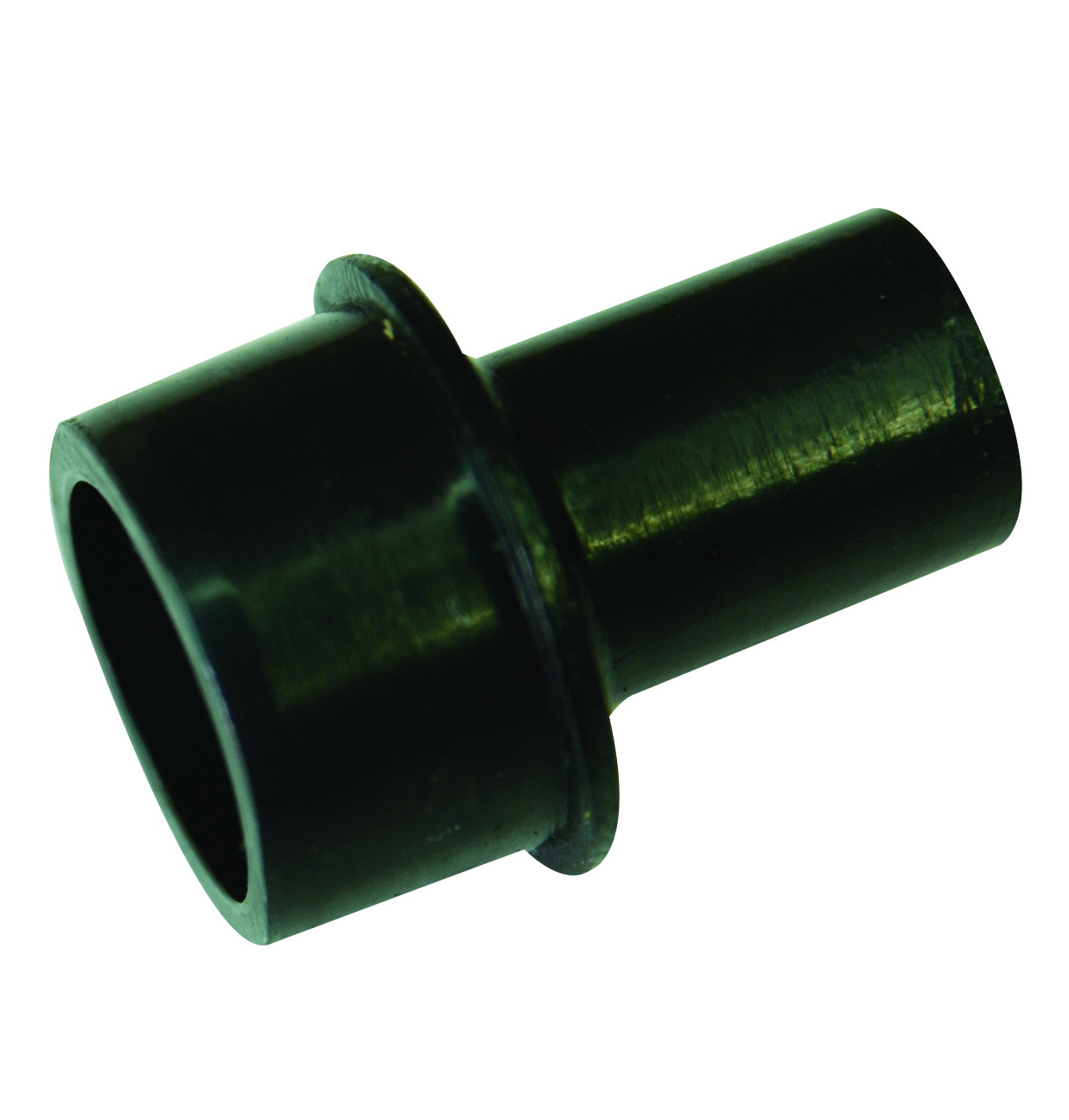

Connector 16mm

D-715L
Connector 16mm

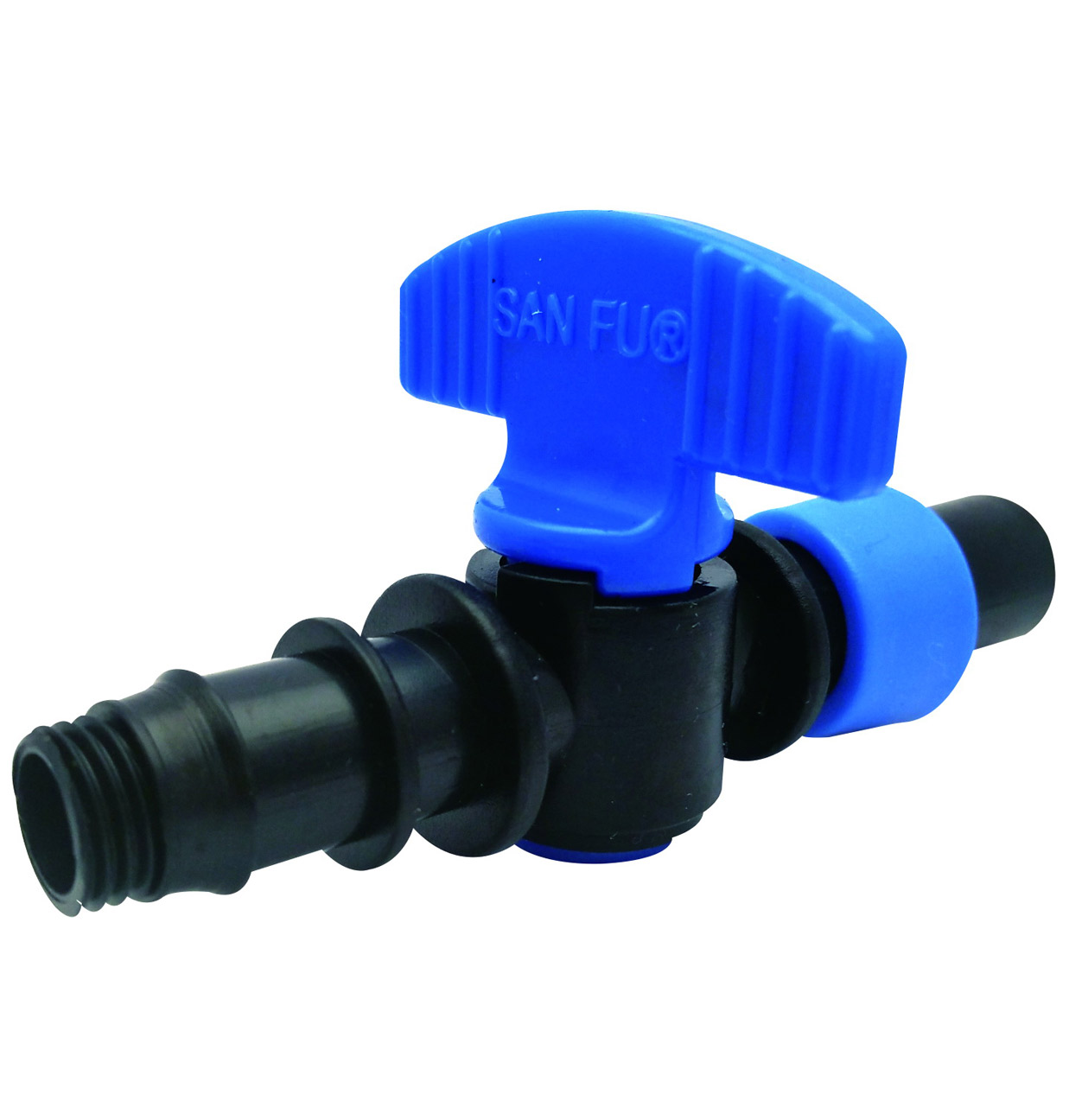

Valve 16mm

D-716
Valve 16mm

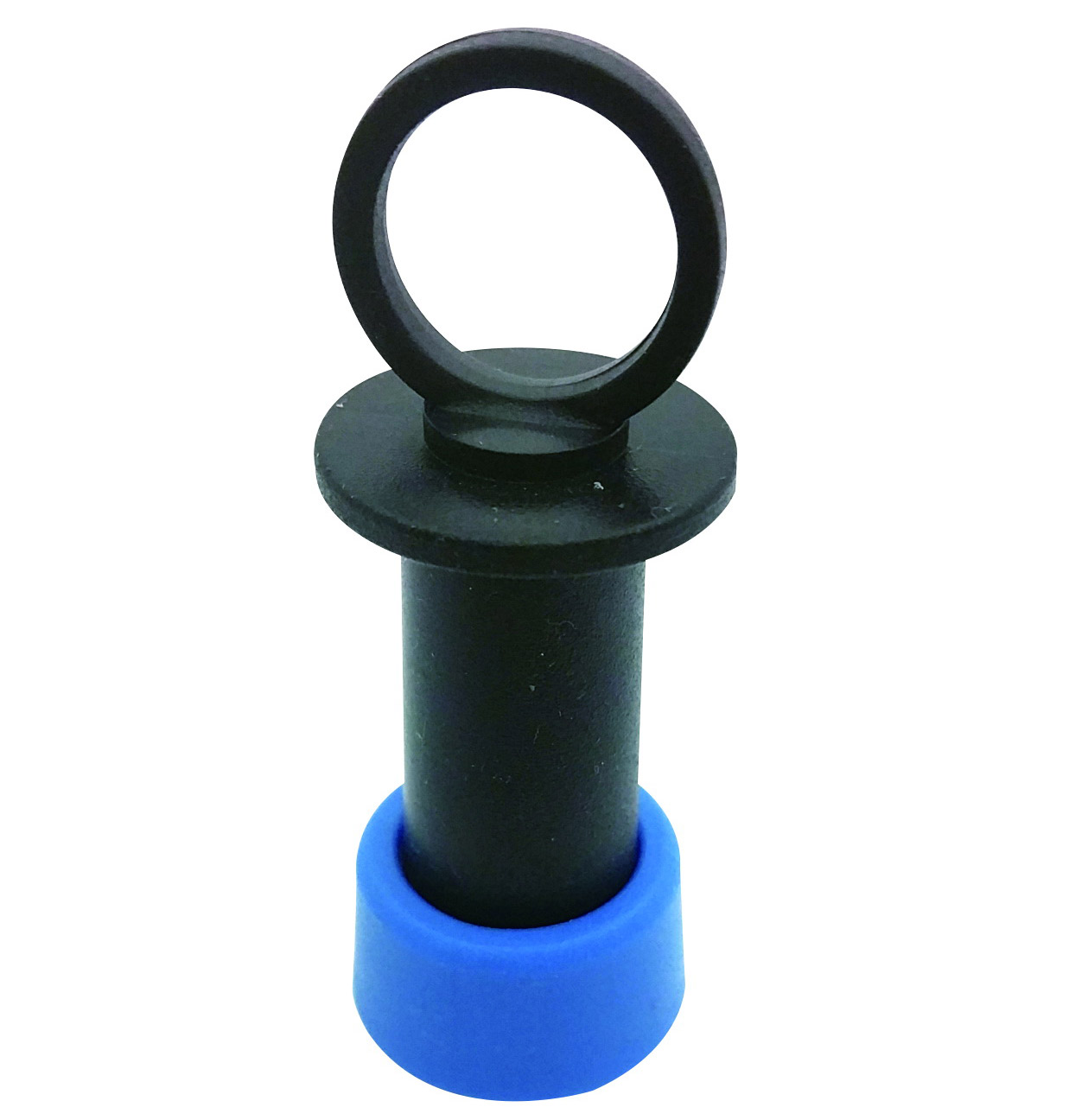

Cap 16mm

D-717
Cap 16mm

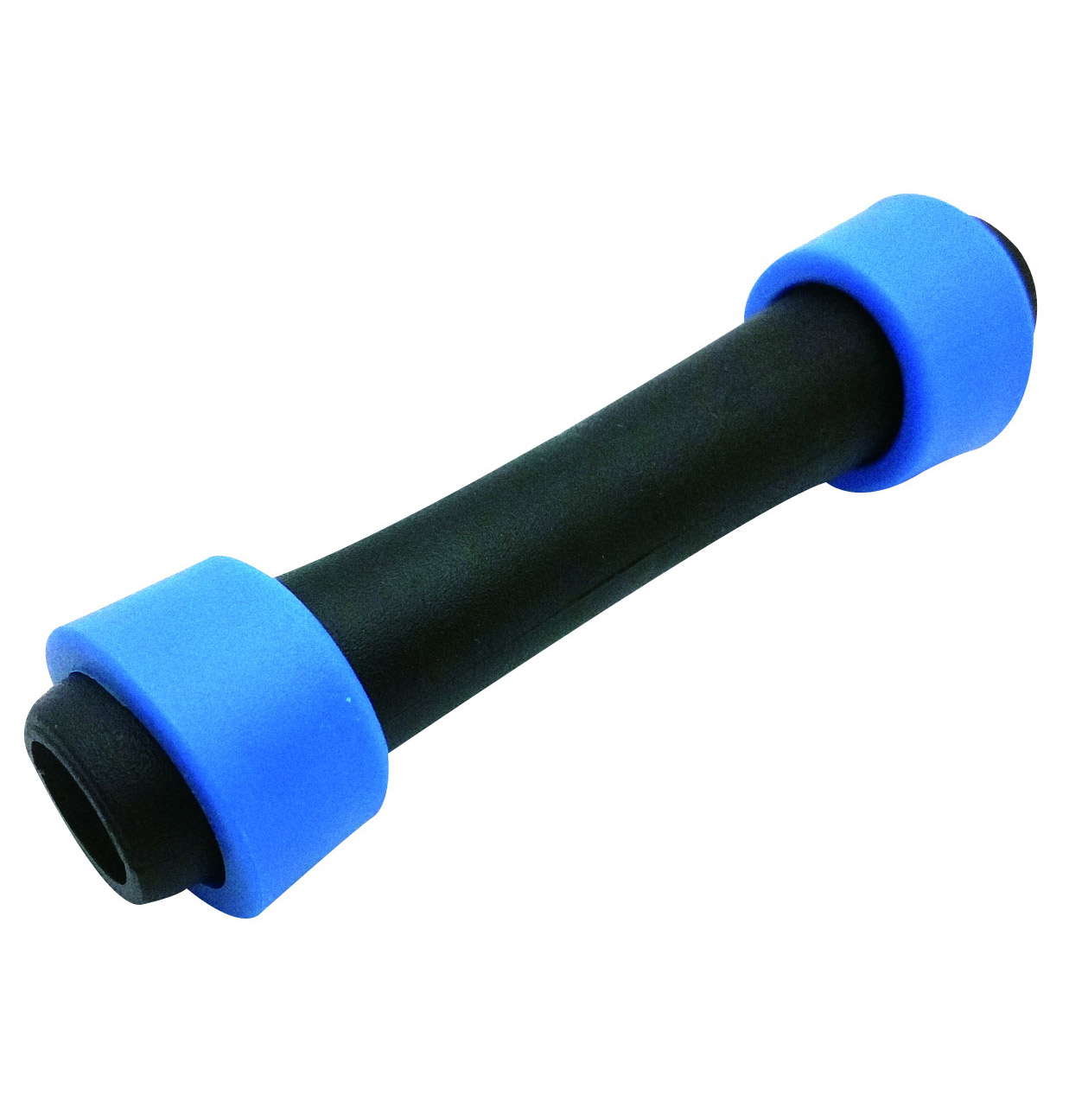

Tape Connector

D-718
Tape Connector

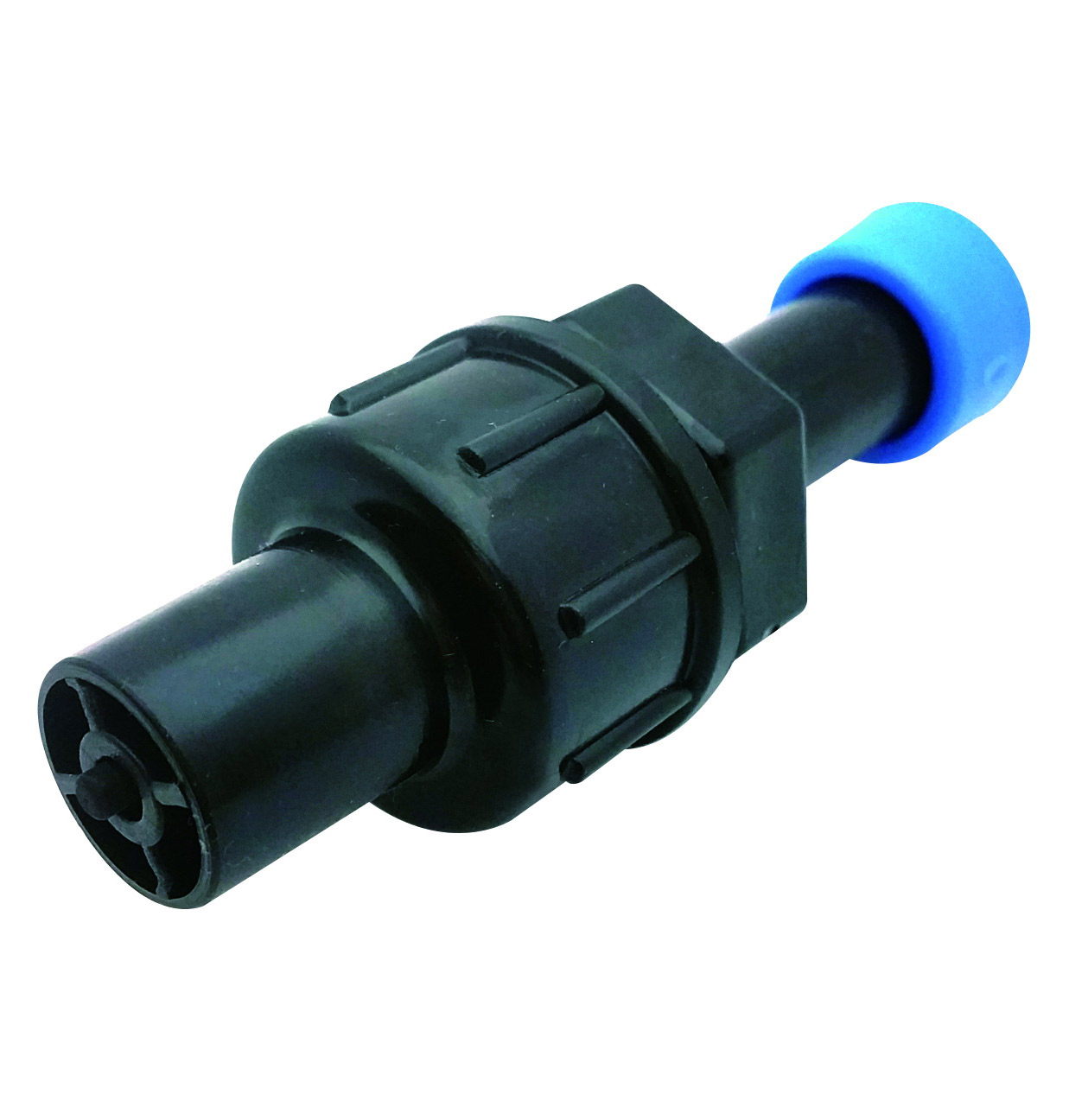

Air Discharge Valve 16mm

D-719
Air Discharge Valve 16mm

Drip Clamp 16mm

D-720
Drip Clamp 16mm

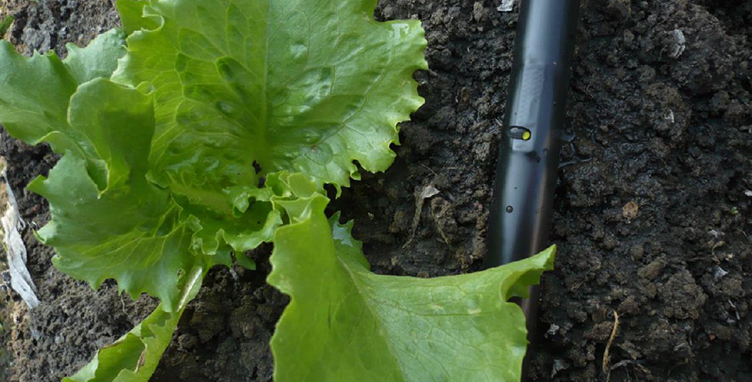

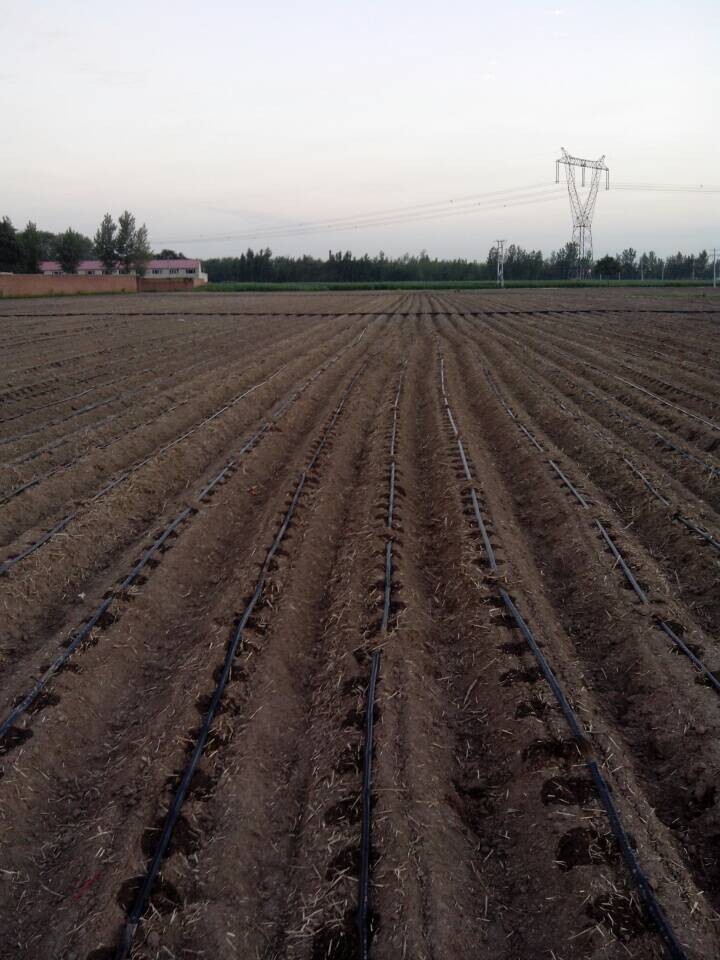

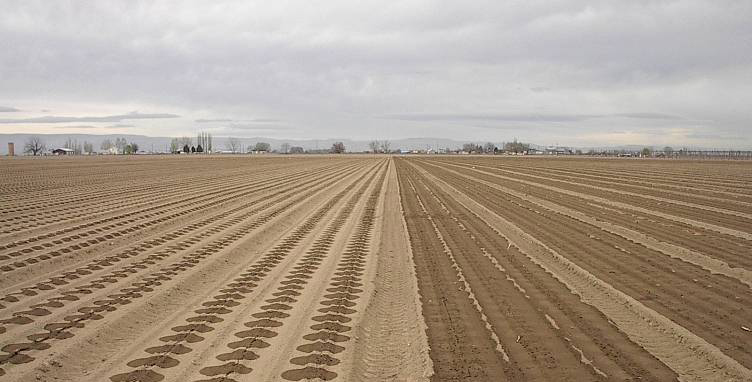

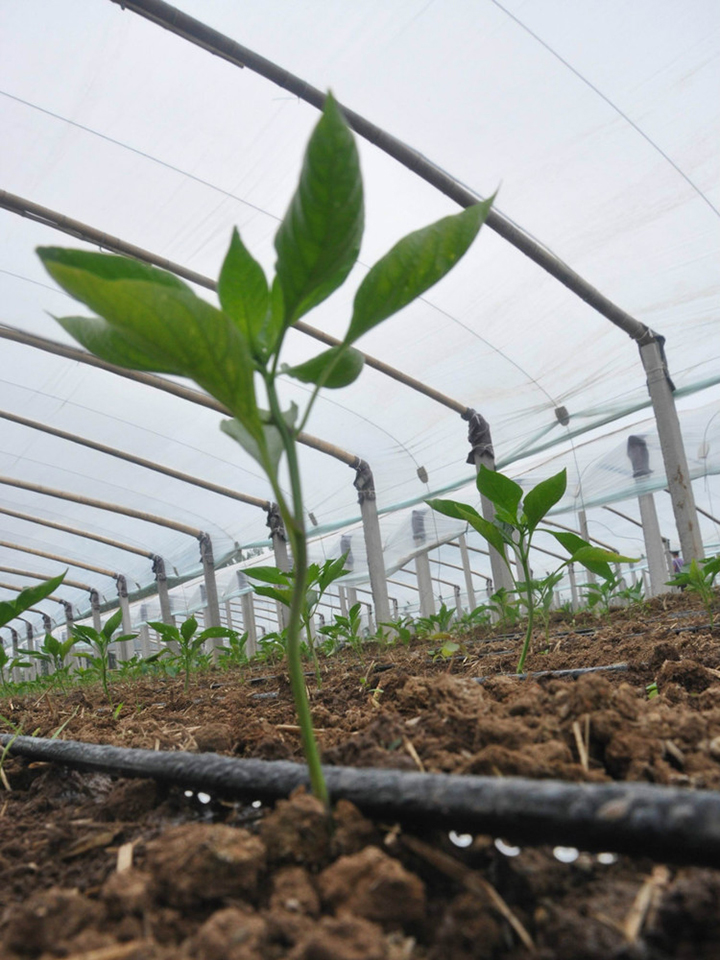

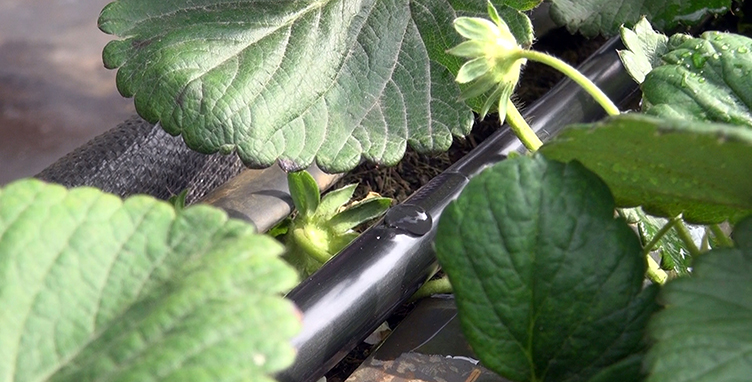

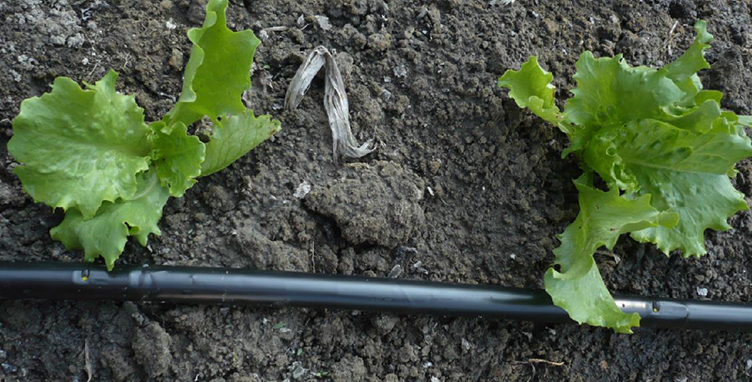

Product Application Photo
Irrigation Tape SystemIrrigation Tape System
Irrigation Tape SystemIrrigation Tape System
Irrigation Tape SystemIrrigation Tape System
more

Industrial Nets

Our industrial nets include construction net (construction safety netting) and window screen net. The purpose of construction safety netting is mainly to protect the walker or worker who passing the constructing building. Window screen net is mainly applied in window screen, door screen or other affairs. Welcome to contact with us directly for further information.

Construction Net
Window Screen Net
more

Mesh Fabrics

The global environment pollution is getting worse day by day. So it is time for people to improve and reduce pollution, leave a cleaner space to our children. In the past, the product was used PVC coated materials to be the basic materials for daily commodities, like hand bags, chairs, place mat which bring a huge burden to our lives and the environment. Nowadays we have the chance to change the new condition and leave one greener future for the once that we love.

So far we have succeeded in developing HDPE coated fabrics, we call “PE textilene”. We will use this to replace PVC coated materials for daily using. We also use TPEE to develop elastic yarn for elastomeric mesh chair.

We separated two materials at two main business. One is use PE textilene for outdoor chair and place mat. The one is using elastic mesh fabrics for office mesh chair. The mostly mesh chair will be used in ergonomic design.

If you are interested in our new HDPE fabric, you are very welcome to contact us. We will be more than glad to be in touch with you and provide you with further information.

Elastic mesh fabrics
PE Textilene Net
more

Accessory

spec
Part No Product Name Spec Feature
AGP-00010 Plastic Peg for Gound Cover PP W/ UV,
Cap size : 9.2cm * 3.8cm、
Length : 10" (25cm),
34.5g/pce±5%
1. High Impact Resistence
2. Easy for Fitting Ground Cover
3. High Resistance to weather distree
AGP-00008 PP W/ UV,
Cap size : 9.2cm * 3.8cm、
Length : 8" (20cm),
28g/pce±5%
AGP-00006 PP W/ UV,
Cap size : 9.2cm * 3.8cm、
Length : 6" (15cm),
24g/pce±5%


spec
Part No Product Name Spec Feature
ARCC-00350 3.5" Round Post Cap W/ Cross PP W/ UV,
inner diameter : 3 5/8"、
external diameter : 3 7/8"、
High : 5.5cm, 113.5g/pce±5%
1. Ideal for using in anti hail system and net house system with bamboo and Steel pole
2. The cape does not alter the net links of the top
3. High resistance for weather distress
ARCC-00300 3" Round Post Cap W/ Cross PP W/ UV,
inner diameter : 3"、
external diameter : 3 7/8" 、
High : 5.5cm, 114g/pce±5%
ARCC-00250 2.5" Round Post Cap W/ Cross PP W/ UV,
inner diameter : 2.5"、
external diameter : 2 3/4"、
High : 5.5cm, 80g/pce±5%
ARCC-00200 2.0" Round Post Cap W/ Cross inner diameter : 2.0"、
external diameter : 2 1/4"、
High : 5.5cm, 52g/pce±5%
ARCC-00150 1.5" Round Post Cap W/ Cross PP W/ UV,
inner diameter : 1 3/4"、
external diameter : 2"、
High : 5.5cm, 43g/pce±5%
ARCC-00114 1 1/4" Round Post Cap W/ Cross PP W/ UV,
inner diameter : 1 1/4"、
external diameter : 2"、
High : 5.5cm, 42.5g/pce±5%


spec
Part No Product Name Spec Feature
APP-00100 1" Post Plug PP W/ UV,
inner diameter : 7/8"、
external diameter : 1"、
High : 4.5cm, 22.5g/pce±5%



spec
Part No Product Name Spec Feature
ARC-00150 1.5" Round Post Cap PP W/ UV,
inner diameter : 1 1/4"、
external diameter : 1.5"、
High : 2.5cm, 6.5g/pce±5%
1. Ideal for Cover bamboo or Steel pole
2. For Protect the net on the top
3. High resistance for weather distress
ARC-00100 1.0" Round Post Cap PP W/ UV,
inner diameter : 1"、
external diameter : 1 1/4"、
High : 2.5cm, 6.4g/pce±5%
ARC-00034 3/4" Round Post Cap PP W/ UV,
inner diameter : 3/4"、
external diameter : 1 1/4"、
High : 2.5cm, 4.6g/pce±5%
ARC-00050 1/2" Round Post Cap PP W/ UV,
inner diameter : 1/2"、
external diameter : 1"、
High : 2.0cm, 3g/pce±5%


spec
Part No Product Name Spec Feature
ACP-00200 2.0" Clip PP W/ UV,
inner diameter : 2.0"、
length : 3 3/4", 63.5g/pce±5%
1. Perfect for Fixing net and film
2. High resistance for weather distree
ACP-00150 1.5" Clip PP W/ UV,
inner diameter : 1 1/2"、
length : 3 3/4", 50g/pce±5%
ACP-00114 1 1/4" Clip PP W/ UV,
inner diameter : 1 1/4"、
length : 3 3/4", 43g/pce±5%
ACP-00118 1 1/8" Clip PP W/ UV,
inner diameter : 1 1/8"、
length : 2 3/4", 29g/pce±5%
ACP-00100 1" Clip PP W/ UV,
inner diameter : 1"、
length : 3", 22.5g/pce±5%
ACP-00034 3/4" Clip PP W/ UV,
inner diameter : 3/4"、
length : 2 7/8", 16.5g/pce±5%
ACP-00050 1/2" Clip PP W/ UV,
inner diameter : 1/2"、
length : 2 7/8", 16g/pce±5%

Clip and Hook:

Clip and Hook -2
Part No Product Name Spec Feature
DCG-010 Round Clip Nylon W/ UV,
10g/pce±5%
1. for join the net without sew work
2. For fix the net with wire


Clip and Hook -1
Part No Product Name Spec Feature
DCG-009 Butterfly Clip Nylon W/ UV,
9g/pce±5%
1. for join the net without sew work
2. For fix the net with wire


Clip and Hook -3
Part No Product Name Spec Feature
DHG-035 Plastic Hook Nylon W/ UV,
3.5g/pce±5%
1. for hand on the net on the air
2. Hook net with clip on the wire

Post Cap:

  DJ-101A DJ-101B DJ-102 DJ-103 DJ-104 DJ-105
Post Cap - DJ-101A Post Cap - DJ-101B Post Cap - DJ-102 Post Cap - DJ-103 Post Cap - DJ-104 Post Cap - DJ-105
Material Nylon Nylon Nylon Nylon Nylon Nylon
Inner-Diameter 1" 1" 1" 1-1/4" 1-1/4" 1-1/4"
1-1/4" 1-1/4" 1-1/4" 1.5" 1.5" 1.5"
1.5" 1.5" 1.5" 2.0" 2.0" 2.0"
2.0" 2.0" 2.0"
2.5" 2.5"
3.0" 3.0"

Wire Rope:

  Wire rope Galvanized Wire Rope Galvanized Wire Rope W/ coated
Wire rope Galvanized Wire Rope Galvanized Wire Rope W/ coated
Dia. 3mm, 5mm, 6mm, up
Spec 1 *7 / 7*7 / 7*19

Galvanized nail for Ground Cover:

Product Type spec
V Type
spec
M Type
Materail Galvanized Wire Galvanized Wire
Width 22cm 25cm 30cm 15cm 20cm 25cm
Diameter 4mm 4mm 4mm 4mm 4mm 4mm
Weigth 43.5g/PCS 51.5g/PCS 62.5g/PCS 42.g/PCS 50.5g/PCS 59.5g/PCS
more

Hand Shear Tool

Hand Shear Tool Introduction:

Garden shear is one kind of garden hardware. The garden shear was made in Taiwan. Normally we have pruning shear, hedge shear, and lopper shear. The shear has several kind of structure such as the blade of by pass, Anvil, and straight. The different blade for used in different application. Normally the blade of garden shear is manufactured by carbon steel and stainless. The shear has aluminum, iron, and stainless handle. Each garden shear has different assembly.



In order to produce the stronger Garden shear, the blade has extra process work such as Hard Chrome Plated, heat treatment, sand treatment and high frequency. This can make the blade to be rigid and not easy to rough. So the garden shear will become very sharp blade and durable. Meanwhile, the shear also made by forge. One of solid process work. The forge shear will be heavystronger and durable.



The garden shear is using field farm, greenhouse, backyard, landscape and street. The shear can be easy to fix flower and tree. Even flower and fruit harvesting. The famer can use in their farm work. The household can fix their garden.

more
more

Saw Tool

We provide many kinds of hand saw tools including curve pruning saw, folding pruning saw, hand saw, multi-function saw and pruning saw. There are still a lot of related garden tools in our product catalog, welcome to contact with us directly for further information.
